location:HOME > PRODUCT > SRM Synchronous Reluctance Motor

SRM Synchronous Reluctance Motor

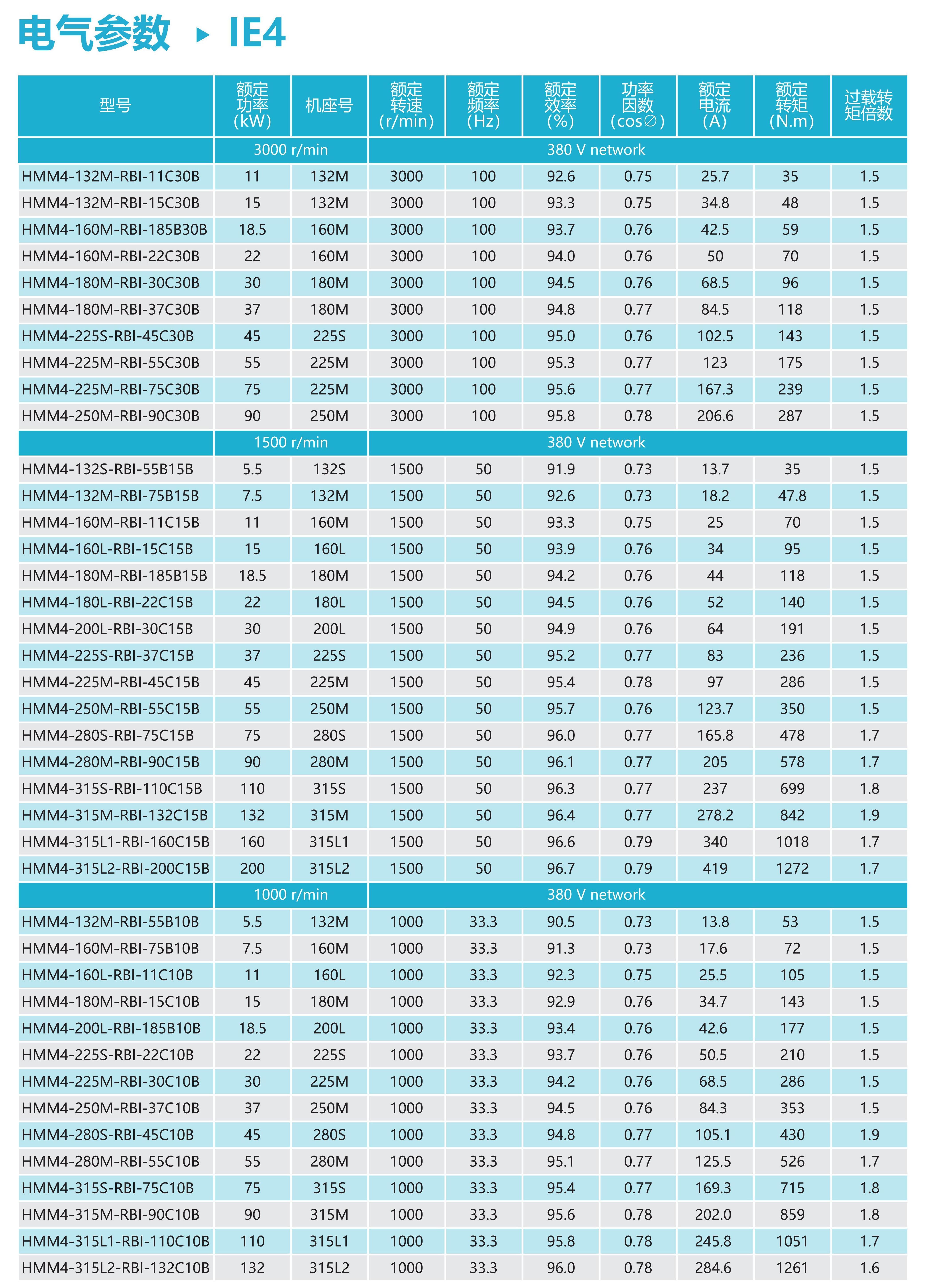

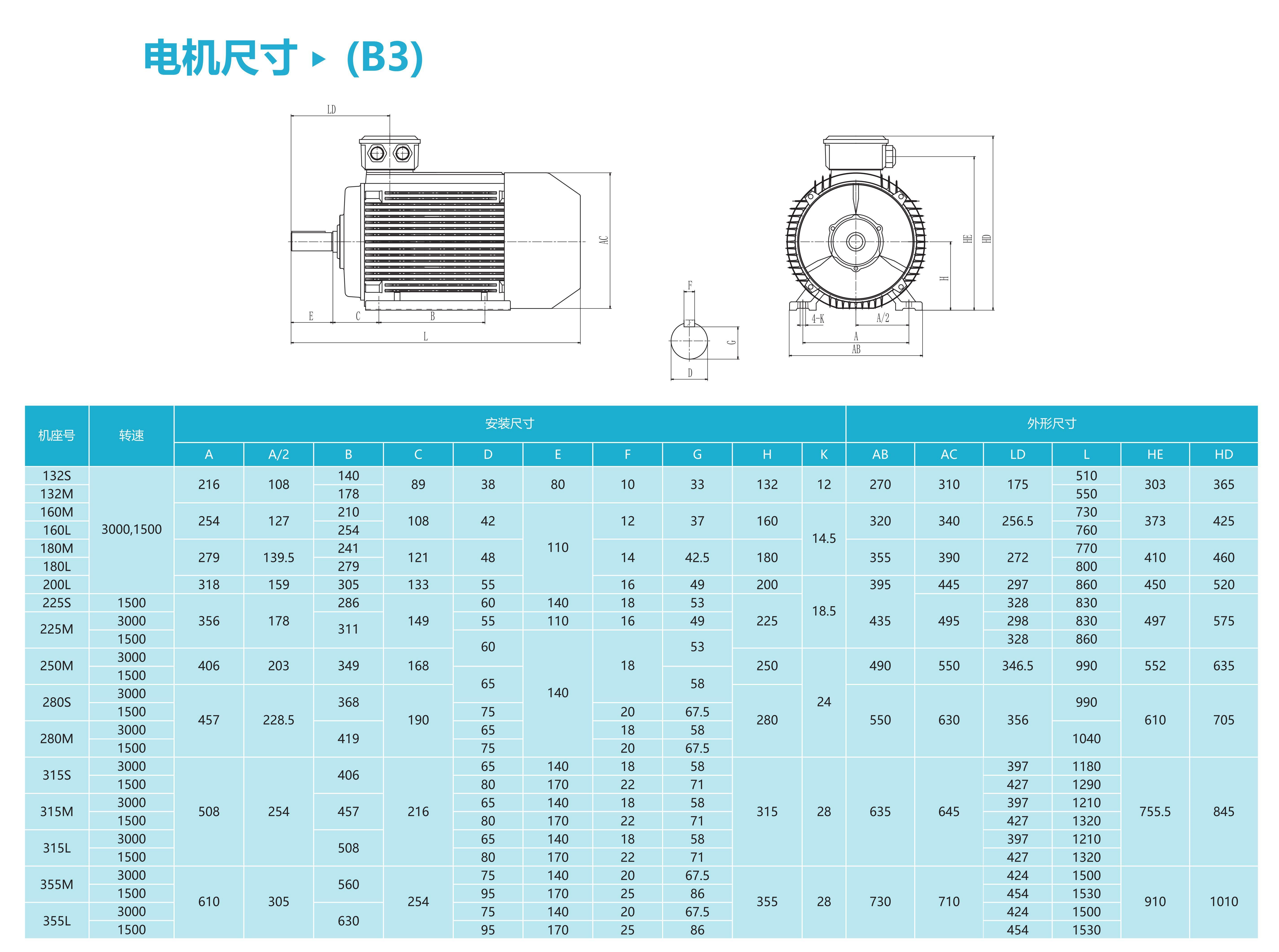

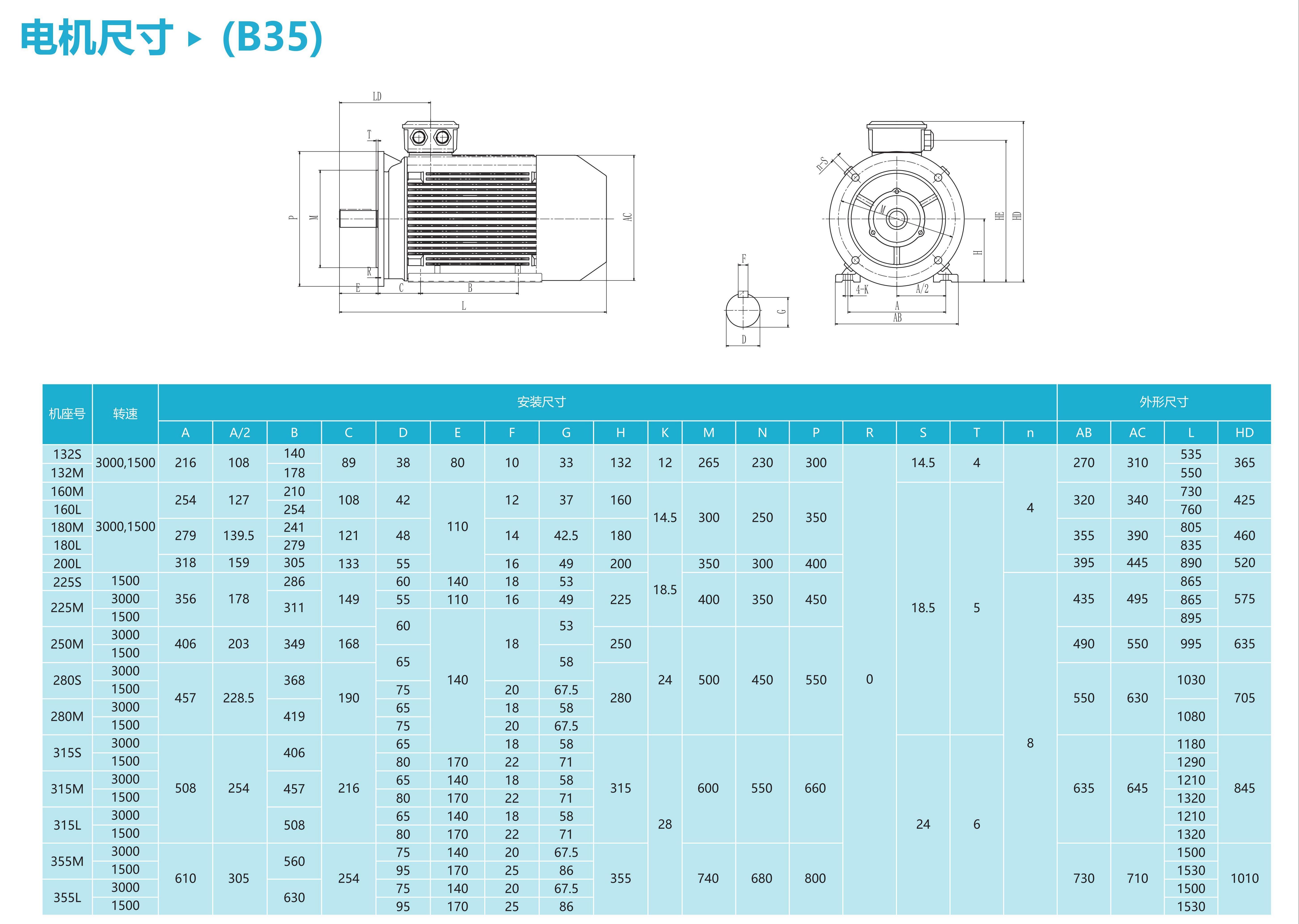

Product briefPerformance dataShape and installation dimensions
Product description SRM series synchronous reluctance motors, also known as reactive motors, are generated using the principle of minimum magnetic reluctance. The reluctance torque or reaction torque can reach IE4 above IEC60034-30-2008 standard. The use of magnetic synchronous motor. Product related parameters
Cabin seat no 63~280
Power 0.12~90kw
Cooling method 1C411
Working system S1
Energy efficiency rating 中国GB18613-2012 3级
Main specifications
Rated voltage 380V
Rated frequency 50Hz
Protection level IP55
Cooling method IC411
Working system S1
Insulation class F
Installation method B3、B5、B35
