YE3 Series Motor

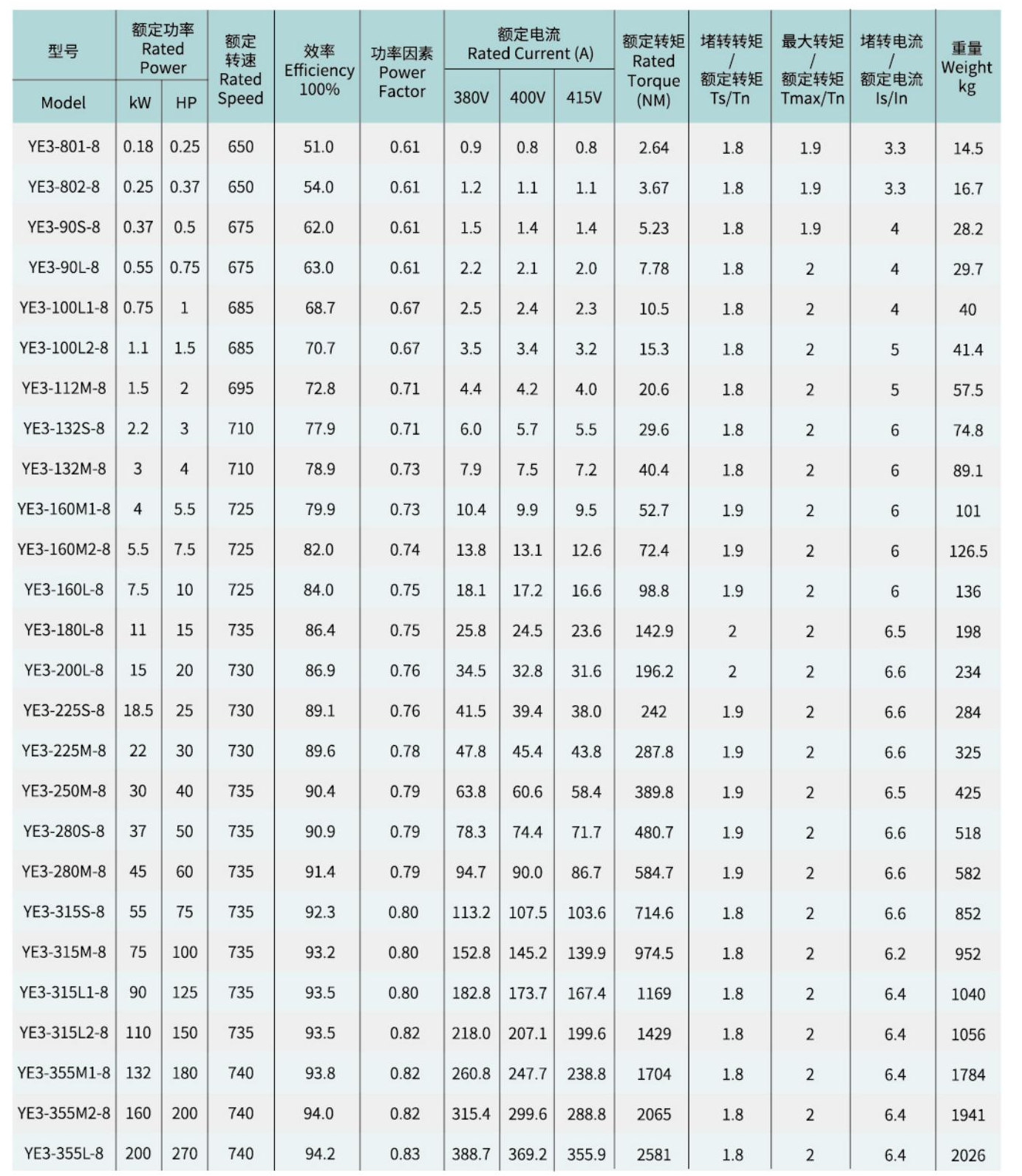

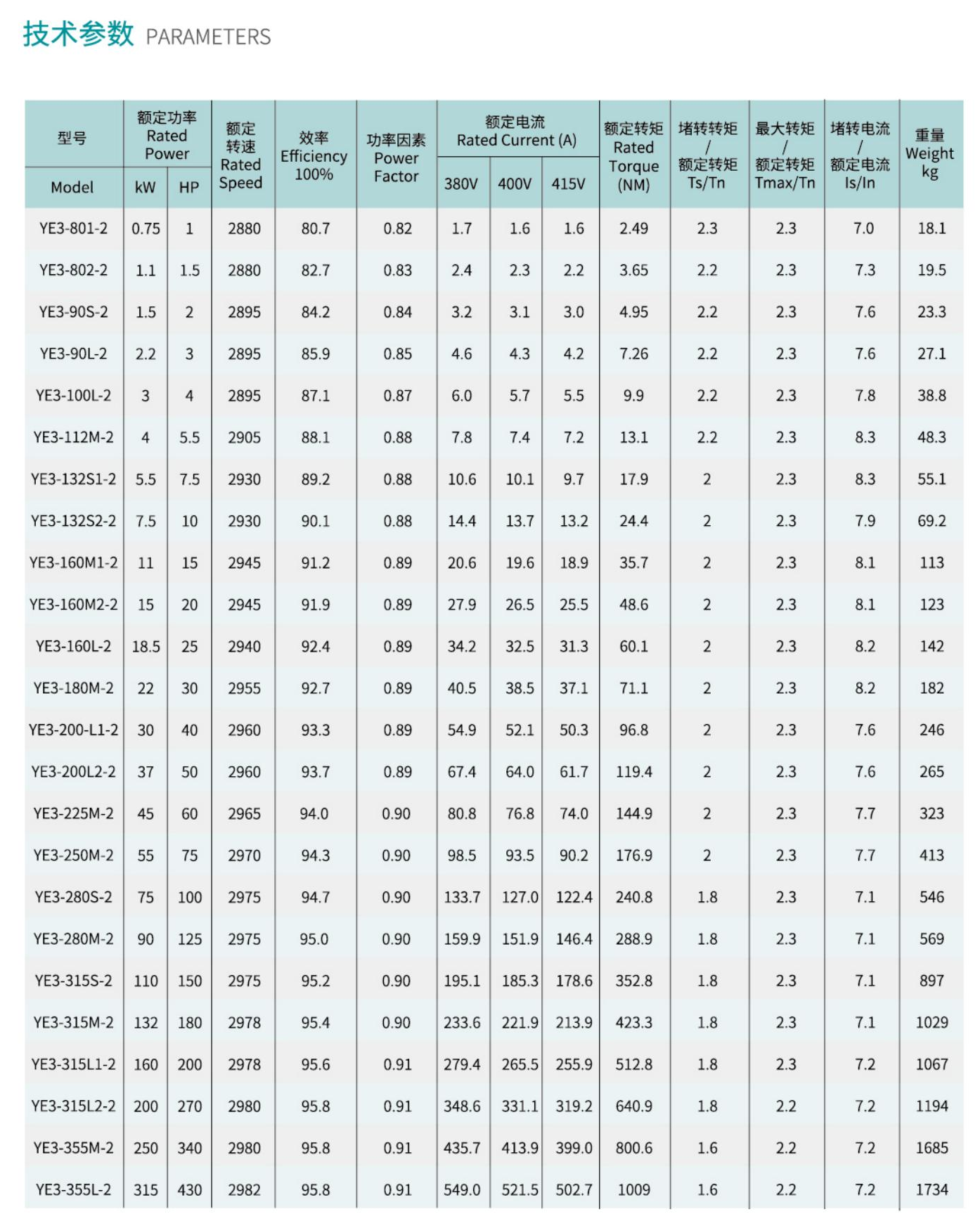

Product briefPerformance dataShape and installation dimensions
Product description YE3 series three-phase asynchronous motors comply with the secondary efficiency standards specified in GB18613-2012 "Limited Values and Levels of Energy Efficiency of Small and Medium-sized Three-phase Asynchronous Motors" and the IE3 energy efficiency level of the IEC60034-30-2008 standard. The use environment is the same as that of YE2 series high-efficiency motors, with higher efficiency, which is the first choice for energy-saving and environmental protection transformation. Product related parameters
Cabin seat no 63~280
Power 0.12~90kw
Cooling method 1C411
Working system S1
Energy efficiency rating 中国GB18613-2012 3级
Main specifications
Rated voltage 380V
Rated frequency 50Hz
Protection level IP55
Cooling method IC411
Working system S1
Insulation class F
Installation method B3、B5、B35
